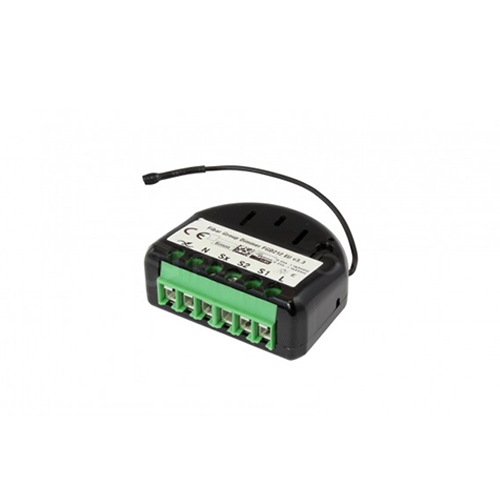

Fibaro Dimmer Switch 2

Remotely controlled light dimming module FIBARO Dimmer 2 is designed to work with various types of light sources. It may be connected to a two-wire or three-wire configuration so it can operate with or without neutral lead.

Description

Remotely controlled light dimming module FIBARO Dimmer 2 is designed to work with various types of light sources. It may be connected to a two-wire or three-wire configuration so it can operate with or without neutral lead. FIBARO Dimmer 2 can switch or dim connected light source either through radio waves or through the wall switch connected directly to it.

Main features:

  • Compatible with any Z-Wave or Z-Wave+ Controller
  • Advanced microprocessor control
  • Implemented algorithm of smart light source detection
  • Auto-adjustment of the appropriate control mode to the connected load
  • Active power and energy metering functionality
  • Soft-start function
  • Memory of the last lighting level settings
  • Works with various types of switches – momentary, toggle, three-way, etc.
  • Active element: semiconductor electronic switch
  • To be installed in-wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
  • FGD-212 is an extension unit

Technical data:

  • Power supply: 100-240 V~ 50/60 Hz
  • Power consumption: < 1.3W
  • Operational temperature: 0-35°C
  • Dimensions (L x W x H): 42.5 x 38.25 x 20.3 mm
  • For installation in boxes: Ø ≥ 50mm
  • Operational current: 0.25-1.1A
  • Device temperature protection: 105°C
  • Active element: semiconductor electronic switch ε
  • Device control: remotely – radio waves; directly – external switch
  • Radio protocol: Z-Wave
  • Radio signal power: up to 1mW
  • Radio frequency: 868.4, 869.85 MHz EU; 908.4, 916.0 MHz US; 921.4, 919.8 MHz ANZ; 869.0 MHz RU; 919.8 MHz HK;
    868.1 MHz MY; 865.2 MHz IN; 915.0 Mhz – 917.0 Mhz IL; 922.0 MHz – 926.0 MHz JP; 868.4 MHz CN, KR;
  • Radio transmit power: up to 6 dBm (EIRP)
  • Range: up to 50 m outdoors; up to 30 m indoors (depending on building materials)
  • Comply with EU directives: RED 2014/53/EU; RoHS 2011/65/EU
