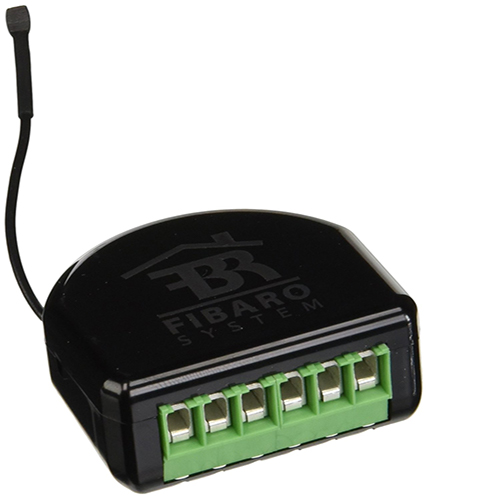

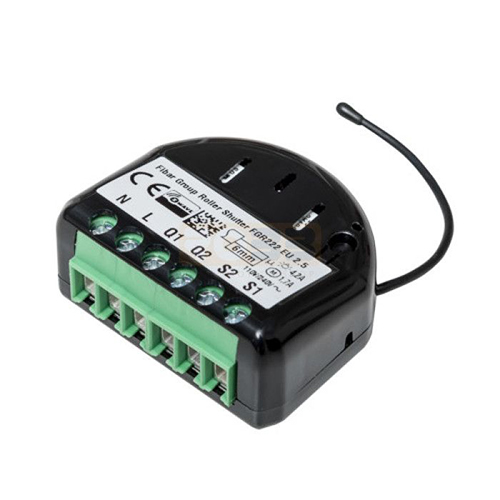

Fibaro Roller Shutter

FIBARO Roller Shutter 3 is a new version of the radio-controller based on Z-Wave 5 technology. It works with motorized roller blinds, Venetian blinds, awnings, and gates. The Roller Shutter 3 is powered by a single-phase AC and provides precise positioning of blinds, awnings, or gates so they can be set to the position you choose. The module is also equipped with a power metering feature when used with a Aureka Smart Gateway.

Description

FIBARO Roller Shutter 3 is a new version of the radio-controller based on Z-Wave 5 technology. It works with motorized roller blinds, Venetian blinds, awnings, and gates. The Roller Shutter 3 is powered by a single-phase AC and provides precise positioning of blinds, awnings, or gates so they can be set to the position you choose. The module is also equipped with a power metering feature when used with a Eureka Smart Gateway.

Specifications:

  • Compatible with any Z-Wave or Z-Wave+ Controller,
  • Supports Z-Wave Network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption,
  • To be installed with roller blind motors with electronic or mechanical limit switches,
  • Advanced microprocessor control,
  • Active power and energy metering functionality,
  • Works with various types of switches – momentary, toggle and dedicated roller blind switches,
  • To be installed in-wall switch boxes.

Technical data:

  • Power supply: 100-240V~ 50/60 Hz
  • Rated load current: 4.2A for lamps and resistive loads1.7A for motors with a compensated power factor (inductive loads)
  • Supported motor type: single-phase AC motors
  • Required limit switches: electronic and mechanic
  • Power consumption: up to 0.8W
  • Operating temperature: 0-35°C
  • Active element: micro-gap relay switch μ
  • For installation in boxes: Ø ≥ 50mm, depth ≥ 60mm
  • Radio signal power: EIRP up to 6dBm
  • Radio frequency: 868.4 or 869.8 Mhz EU; 908.4 or 916.0 Mhz US; 921.4 or 919.8 Mhz ANZ; 869.0 Mhz RU
  • Range: up to 50 m outdoors; up to 30 m indoors (depending on building materials)
  • Dimensions: (L x W x H): 42.50 x 38.25 x 20.30 mm
